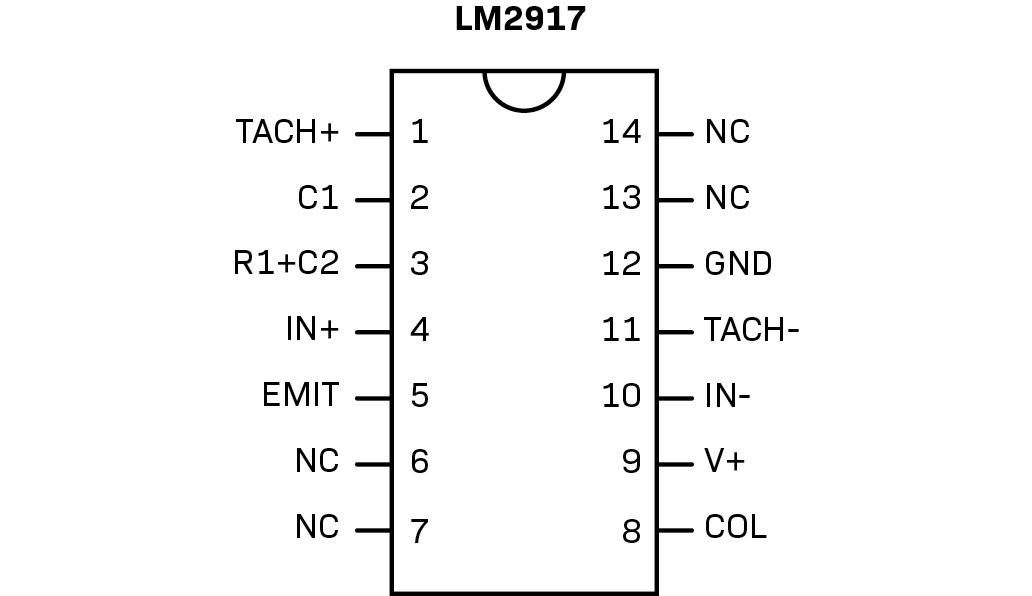

LM2917 Frequency-to-Voltage Converter Specifications
The LM2917 is a monolithic integrated circuit (IC) designed to convert the frequency of an input signal into a proportional analog voltage output. Here's a table summarizing its key specifications:
Parameter
Specification
Type
Frequency-to-Voltage Converter
Function
Converts the frequency of an input signal (e.g., from a sensor) into a DC voltage level.
Input Frequency Range
Typically 0 Hz to 100 kHz (depending on component selection)
Output Voltage Range
0 V to VCC (supply voltage)
Linearity
±0.3% (typical)
